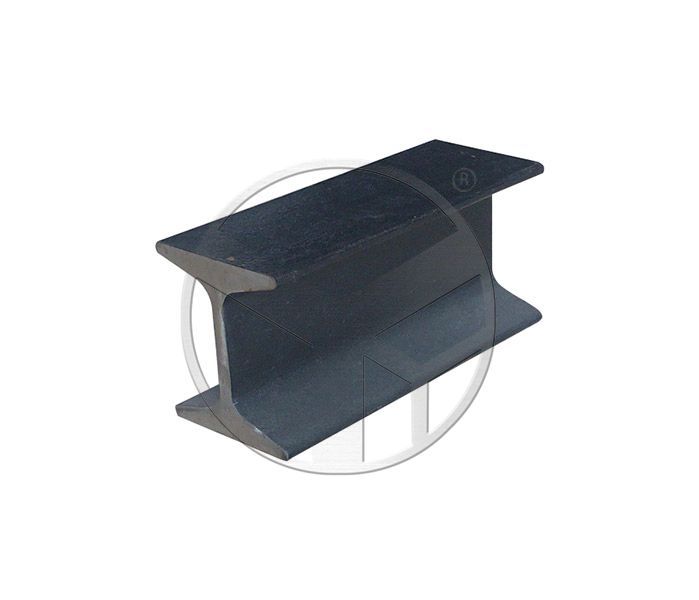

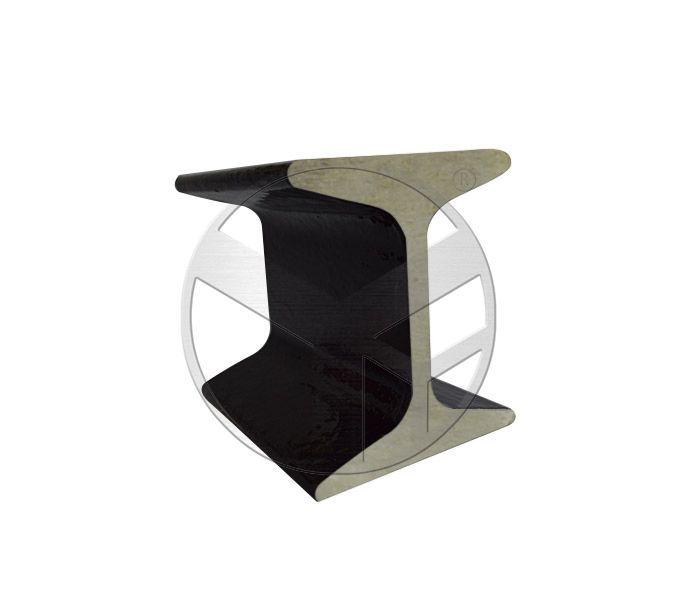

Home >> Product >> I Beam for Mining
Material: Q235 20Mnk
Weight：17.69Kg/m
Length: 8m, 9m, 10m
Standard: YB/T5047-2000
| Name | Model | Sectional Dimensions(mm) | Theory Weight(kg/m) | ||
| Height | Leg width | Waist width | |||
| Mining I-beam | 9# | 90.00 | 76.00 | 8.00 | 17.69 |
| 11# | 110.00 | 90.00 | 9.00 | 26.05 | |
| 12# | 120.00 | 95.00 | 11.00 | 31.18 | |
Introduction and application:
Hot rolled mining I beam can be used in mine road support. In order to avoid or minimize the chance of mine roadway collapsing,mine support products are necessary. And with the I beam support , it can obviously improve the level of safety in the tunnel. The mining I beam can be used under multiple conditions ,fractured road or road with gravel,clay ,silt. Use the I beam accessories accordingly, you can get the most safe work environment in the tunnel under many circumstances.
